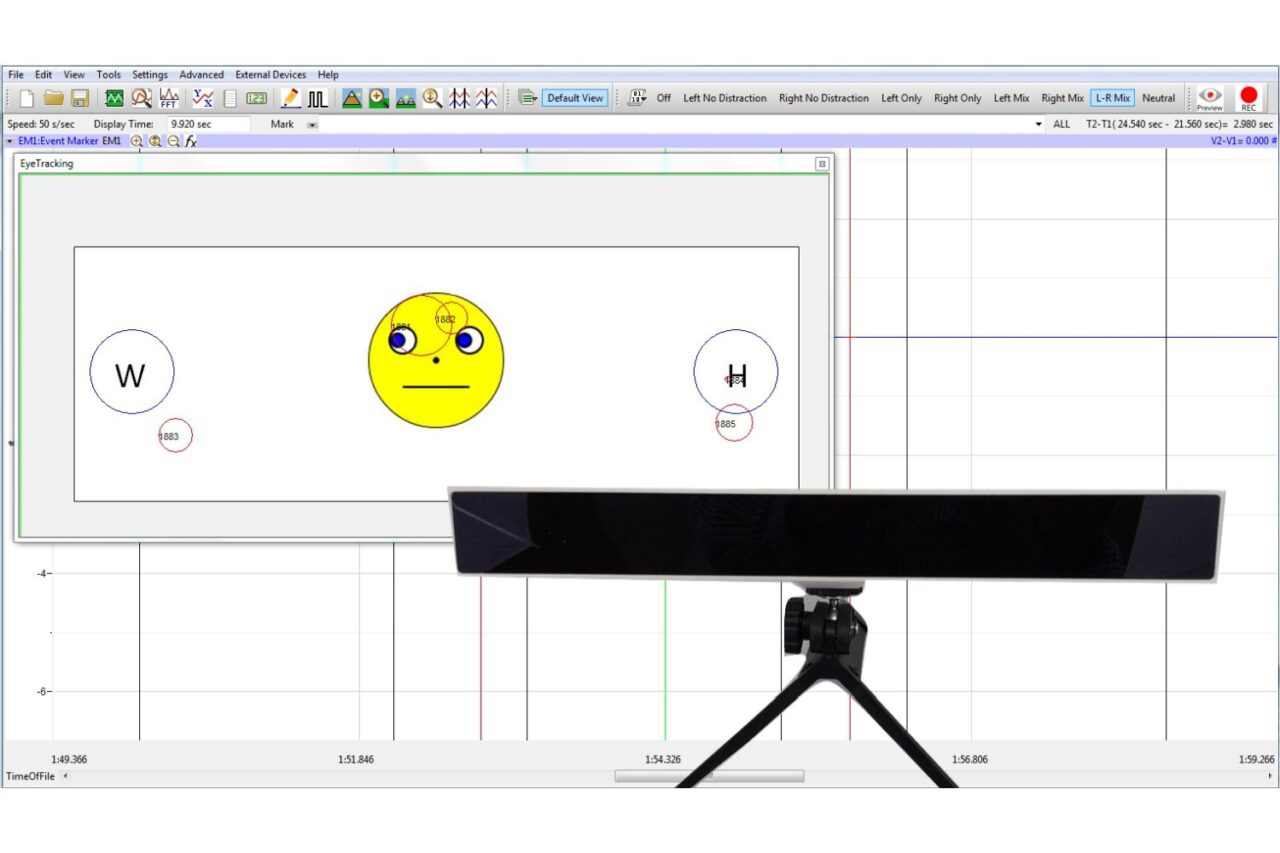

A-iTRAX Eye Tracking Add-on Set

The A-iTRAX extends iWorx Teaching kits, with Eye Tracking.
Record eye tracking information, along with physiological data from any iWorx Recorder. Visualize and analyze subject reactions to various visual stimuli.

Features:

• Use the Experiment Builder, which is part of LabScribe, to present images to the subject.
• Multi-monitor support
• Visualize scan path, and fixation duration.
• Real-Time Display
• Multiple Areas of Interest.
• Pupil Diameter
• Correlate Images displayed with eye tracking and physiological data

The A-iTRAX includes:

• A-GZT : Gazepoint Eye Tracker
• LS-iTRAX : LabScribe Eye Tracking Module.

EyeTracker specs:

• 0.5 ? 1 degree of visual angle accuracy
• 60 Hz
• 5- or 9-point calibration
• Easy-to-use
• 25cm (horizontal) x 11cm (vertical) movement
• ?15 cm range of depth movement
• Ultra portable ? 320 x 45 x 40 mm (145g)
• Compatible with 24? displays or smaller

Optional: The LS-220 Light Sensor, can be mounted to a monitor, to avoid operating system delays and detect onset of visual stimuli with precision.
