Rotometer

Get the most reliable and accurate test results with the Rotometer Activity System, widely-used and cited in research of Parkinson’s disease (PD), Traumatic Brain Injury (TBI), acquired brain injury, and spinal cord injury. The SDI Rotometer test stations are designed to make the animal turn within its own length, which ensures exploratory behavior will not be counted as a rotation. Additionally, you will have greater flexibility with the option to run up to 16 stations from a single computer and choosing between the full-turn or quarter-turn options.

Features#

  • Configure up to 16 test stations for rapid testing of large subject groups
  • Independent start/stop switch
  • Full-turn or quarter-turn options
  • All study data is stored in a database, providing quick and easy export

Description#

Highlights of the Rotometer Photobeam Activity System include:

Simple Loading and Unloading of Your Subjects

Rotometer gives you the flexibility to load animals and begin testing them before moving on to the next station—eliminating any need to hurry and load all stations before starting the test. All animals will be tested for the same duration of time, regardless of when they were loaded.

Quick and Easy Harnessing

To harness the animals, just place the elastic around the body behind the front paws. Since the Rotometer harness is a Scünci® brand hair elastic, it is easily replaceable from a local store.

Ensure “True” Rotations

The long design of the harness mount assures that the animal will remain in the center of the enclosure and turn within its own length—giving you true rotations as opposed to possible exploratory behavior.

No Turns Go Uncounted

Measure either full or quarter turns with your Rotometer Activity System. With the quarter turn feature, animals can reverse direction in less than a full turn and still be counted.

Eliminate Surprises with Real-Time Monitoring

The Rotometer Run Time module provides a real time display of rotations, allowing you to monitor activity and make sure all test stations are running correctly. This eliminates any surprises when the data is reviewed.

Accurate Reporting and Analysis with User-Friendly Software

Rotometer’s latest software gives you more flexibility and accuracy than ever. Not only is all of your data saved in one, easily accessed file—but you can define your complete study in advance by pre-assigning animals to specific stations for each session, and then assigning a predefined protocol to every test session.

The software will automatically record your session data and keep it all together in the study’s single file. When you are ready, display your data right on your computer monitor or choose to export it with one click to Microsoft® Excel or to a delimited file type(TAB, CSV, etc.). Other software features include:

  • Define Your Study in Advance

Make sure you collect the most accurate data possible by defining each of your planned test sessions. You will be able to plan session parameters, set subject identifiers, assign subjects to specific test stations, and specify subject parameters such as dose level. To keep from losing any critical data, it will all be stored in a single file format.

  • Automatically Run Sessions

Defining your study in advance not only saves you time by automating sessions, but eliminates run time decisions and data entry that can cause mistakes. You’ll also ensure your results are tightly coupled to your predefined subject identifiers. Simply follow the Rotometer software instructions to execute the test session.

  • Export Directly to Microsoft® Excel (or any delimited file type)

The Rotometer software makes table formatted results available for direct export to Microsoft® Excel or to a delimited file type(TAB, CSV, etc.) and automatically identifies data by column headers. Since the data is exported from a single file, you won’t lose critical information and you’ll save time by removing the need to aggregate multiple single files and possibly reformat them again.

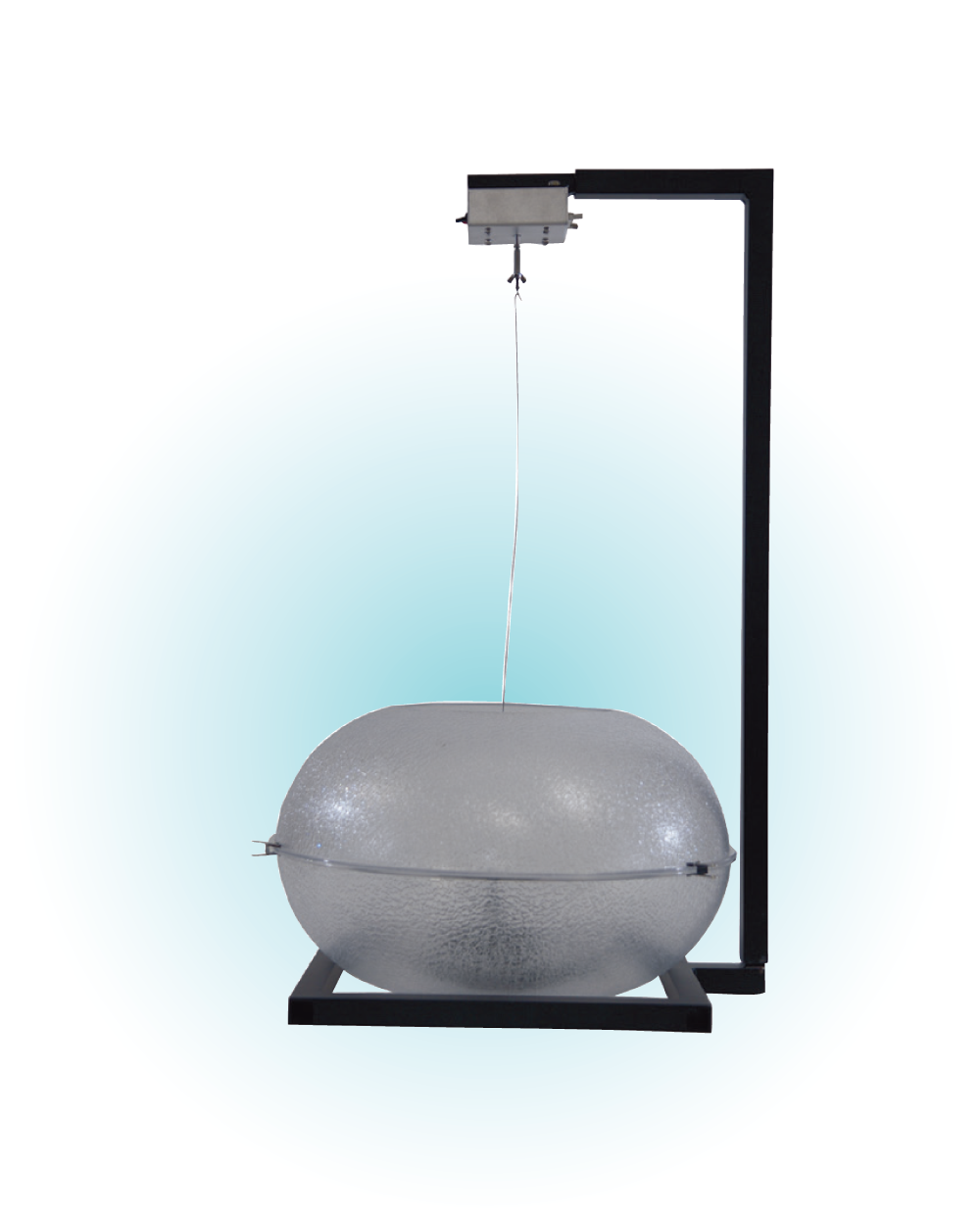

Rotometer System Components:

  • Standard, 18” enclosure(rats) or 12” enclosure(mice) with sloped floor
  • Lightweight, adjustable harness
  • Independent start/stop switch
  • Rotometer application software
  • Test in progress monitoring
  • Full turn or quarter turn options
  • PC interface board for monitoring 16 enclosures
  • Cables & connectors

Specifications#

Dimensions 4” (D) x 3” (W) x 2” (H),Sensor Unit, 18” Enclosure

Material Composition

Aluminum, Acrylic

Maximum # Stations

16

Number of Photobeams 3 per station inside sensor box

Standard Cable Length

12 ft.

Certifications

CE
