Model 1780 Spinal Unit Accessories

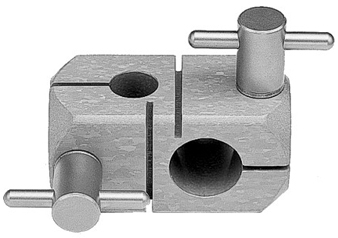

Model 1784 90° Clamp Block#

The 90° clamp block has two holes which are 90° to each other and hold round bars for mounting auxiliary equipment.

Model 1784-1 holds a ½” and ¾” diameter bar.

Model 1784-2 holds two ¾” diameter bars.

Accessory Bars#

Are used with the Model 1784 Clamp Blocks for mounting additional equipment. They are provided in 8″ stainless steel lengths.

Model 1788-1 is ½” diameter.

Model 1788-2 is ¾” diameter.

"Model 1784 90° Clamp Block"

Model 1787 Curved Vertebrae Clamp#

Model 1787 Curved Vertebrae Clamps (pair) are infinitely adjustable clamps. Where maximum rigidity is needed, two or more sets attach to the A/P bars on each side of the instrument.

"Model 1787 Curved Vertebrae Clamp"

Model 1793 Spinal Clamp#

Model 1793 Spinal Clamp is a rotating, screw driven vertebrae clamp. Used for mounting on the A/P bars in any position with a wide adjustment range and maximum rigidity. Model 1793 allows precise lateral placement and even pressure distribution.

"Model 1793 Spinal Clamp"

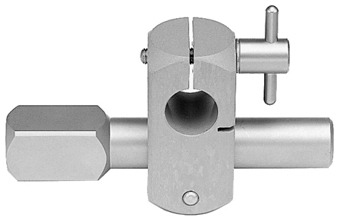

Model 1790 Mounting Bars and Clamp#

Model 1790 Mounting Bar and Clamp is used to mount stereotaxic manipulators. They consist of a square bar mounted to a ¾” diameter bar which is clamped to the A/P bar with Model 1784-2 Clamp Block.

Model 1790-2 fits the 1460 & 1760-SB series manipulators

(18.70 mm A/P Bar).

Model 1790-3 fits the 1760 & 1460-LB series manipulators

(21.65 mm A/P Bar).

"Model 1790 Mounting Bars and Clamp"

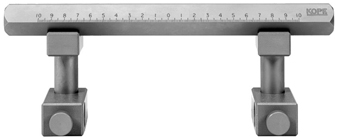

Model 1792 Calibrated Bar and Brackets#

Model 1792 Calibrated Bar and Bracket mount to the A/P bars to accommodate stereotaxic manipulators.

Model 1792-2 fits the 1460 & 1760-SB series manipulators

(18.70 mm A/P Bar).

Model 1792-3 fits the 1760 & 1460-LB series manipulators

(21.65 mm A/P Bar).
