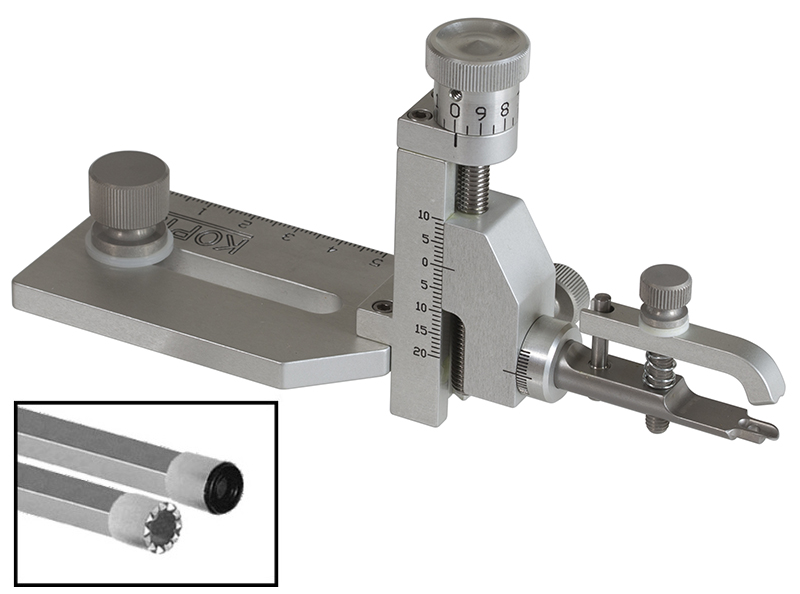

Model 926 Mouse Adaptor

Model 926 Mouse Adaptor includes a nose and tooth (palate) bar assembly with zygoma ear cups.

Dorsal/Ventral adjustment dial – Calibrated in 100 micron increments, 1 mm per revolution.

Dorsal/Ventral adjustment – 30 mm

Dorsal – 10 mm above ear bar zero

Ventral – 20 mm below ear bar zero

Coronal adjustment – 35° (5° graduations)

Adaptor Plate A/P adjustment – 44 mm

Ear Bars – Model 921 Zygoma Ear Cups.

A set of (.305″ dia.) serrated and soft tissue cups included.

(6.3 mm square w/ 35 mm of calibration).

Model 921-E & 923-B compatible with 900, 1430 & 1730 series frames. Model 926 compatible with 900 series frames.

Model 1226 compatible with 1430 series frame.

Model 1726 compatible with 1730 series frame.

Special Order for 1530 series stereotaxic frame.
