Description
The iWorx 6 lead ECG recorder enables accurate and reliable ECG measurement and analysis of humans or animals. Measuring 6 ECG leads LeadI, Lead II, Lead III, aVr, aVl and aVf simultaneously, this compact and lightweight PC-based ECG recorder enables highly detailed analysis of the anterior, lateral and inferior regions of the heart.
The RS-ECG6 system is optimized for measuring large animal ECG.
The IX-ECG6 connects to and is powered by a USB port on any Windows or Macintosh computer. Data is recorded and analyzed with iWorx advanced LabScribe ECG Software Module.
System Includes

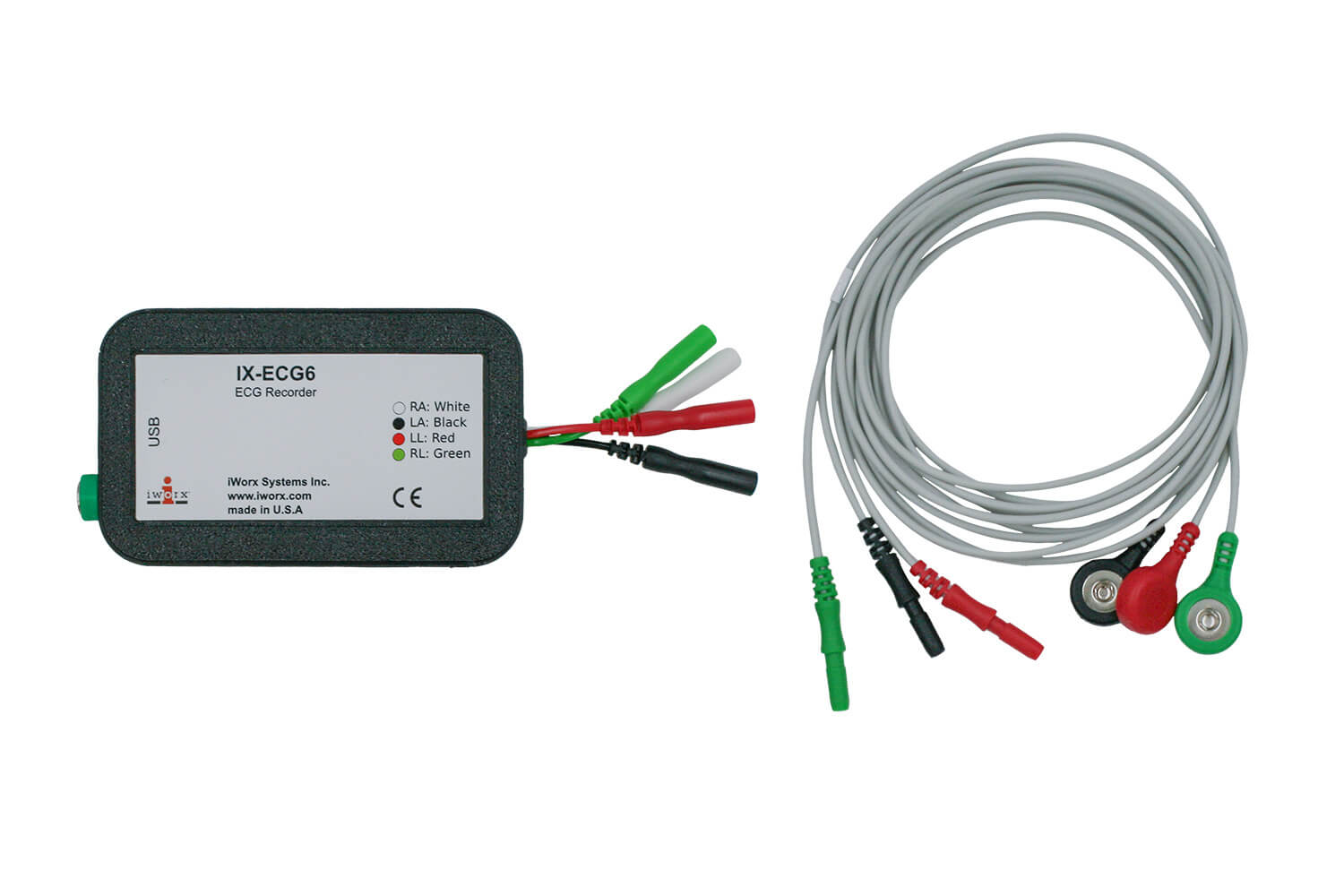

- IX-ECG6 6 Lead ECG Recorder Record 6 ECG leads Lead I, Lead II, Lead III, aVr, aVl, aVf, simultaneously from a single subject.
- LabScribe Data Acquisition and Analysis Software LabScribe Data acquisition and analysis software
- LabScribe ECG Analysis Software LabScribe Data acquisition and analysis software with the advanced ECG analysis module.
- Snap Lead Electrodes C-ISO-SL4: set of 4 snap lead electrodes
Templates for Different Species
- Human
- Small Dog
- Large Dog
- Pig
- Rabbit
- Guinea Pig
- Mouse
- Rat
- Zebrafish
Measurements
- Measure various intervals such as: QRS, QT, QTc, QR, ST Pb-R, P-R, Pe-R, Qb-R, Q-R, S-R, Se-R, Tb-R, T-R, Te-R
- Amplitudes such as: P , Q, R, S , T, ST elevation, QR Amp
Filtering and Averaging
Use FIR and Notch filters to filer out the noise from the ECG signal before processing.
Multiple cycles can also be average further reducing the noise. Average by specified number of beats, or specified time interval.
Graphical Display of Detected Points
The following locations are displayed on the ECG waveform:
- Beginning, peak and end of P
- Beginning of Q
- peak of R wave
- End of S
- Beginning, peak and end of T wave
Outliers and Artifacts
Outlier removal based on abnormal R-R intervals, heart rate, noise, activity, P amplitude, and T amplitude.
Manually mark outliers if needed. A list of outliers is displayed.
