Y-Maze

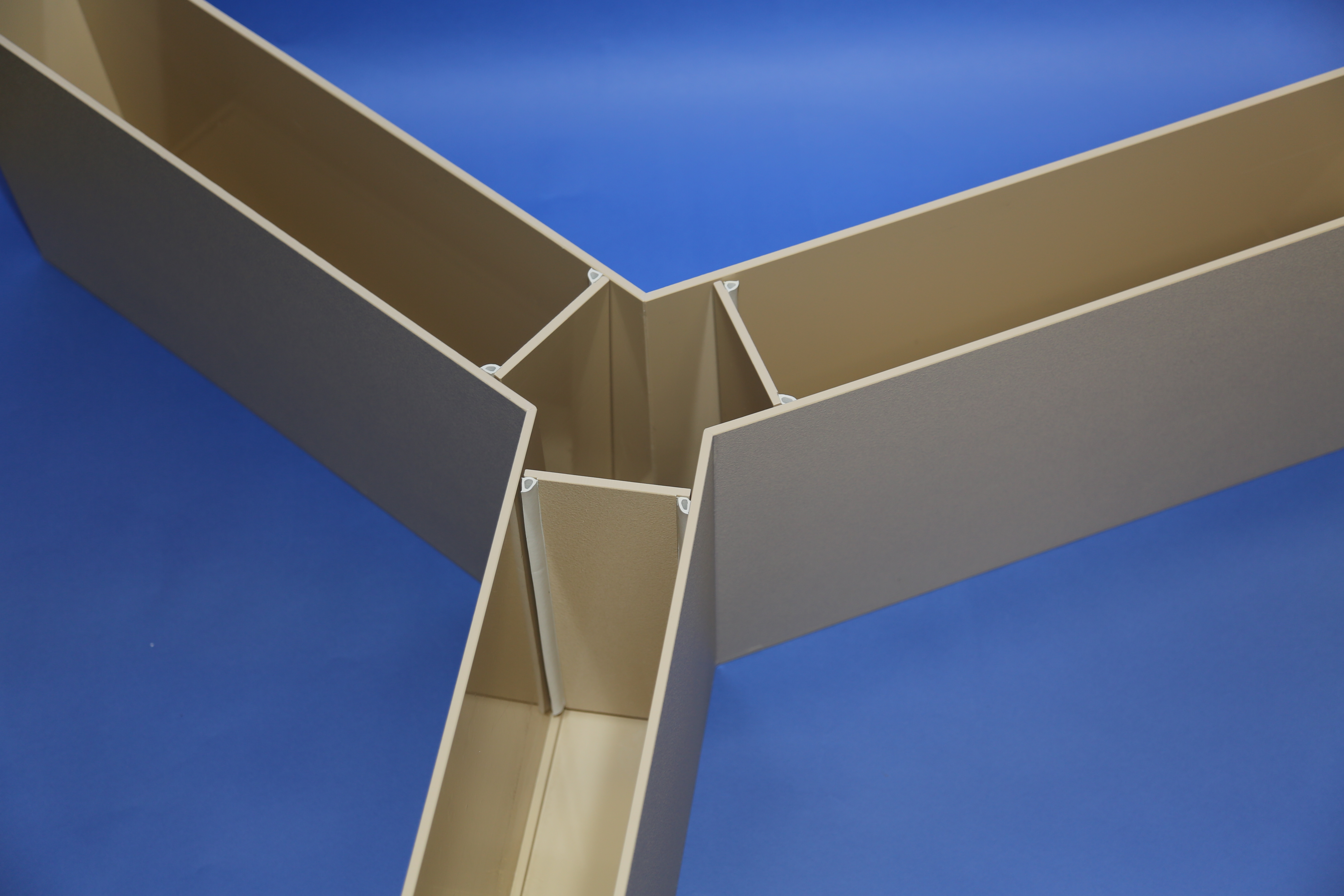

The Y-maze allows animals to select between two arms based on memory or reward. Because the Y-maze’s arms have a gradual turn, animals understand the layout more quickly than a T-Maze, decreasing learning time. San Diego Instruments (SDI) also provides a MOUSE water tight Y maze. Including removable doors, and a variety of additional color options, SDI’s Y-maze adjusts to fit a wide range of experiments. San Diego Instrument’s (SDI) Y-maze is uniquely designed to be easy to use and clean as well as highly versatile.
Features#
- Rat and mouse models
- Compatible with our BehaviorCloud video tracking system
- Solid color model (black, white or beige) or clear wall model (for use with external cues)
- Interchangeable plain and pellet holed floors dry maze only
- Manual doors to block upper arms and base leg starter door
- Made of durable and easy to clean ABS plastic or acrylic
Specifications#
Y Maze Dimensions#
| MOUSE | RAT | |
| A | 3″ | 4″ |
| B | 15″ | 22″ |
| C | 15″ | 22″ |
| D | 5″ | 10″ |
| E | 3.5″ | 7″ |
| H | .75″ DIA. x .5″ DEEP | 1″ DIA. x .75″ DEEP |
Y Maze Water Tight Dimensions#
| MOUSE | |
| A | 3″ |
| B | 15″ |
| C | 15″ |
| D | 12″ |
| E | 3.5″ |
