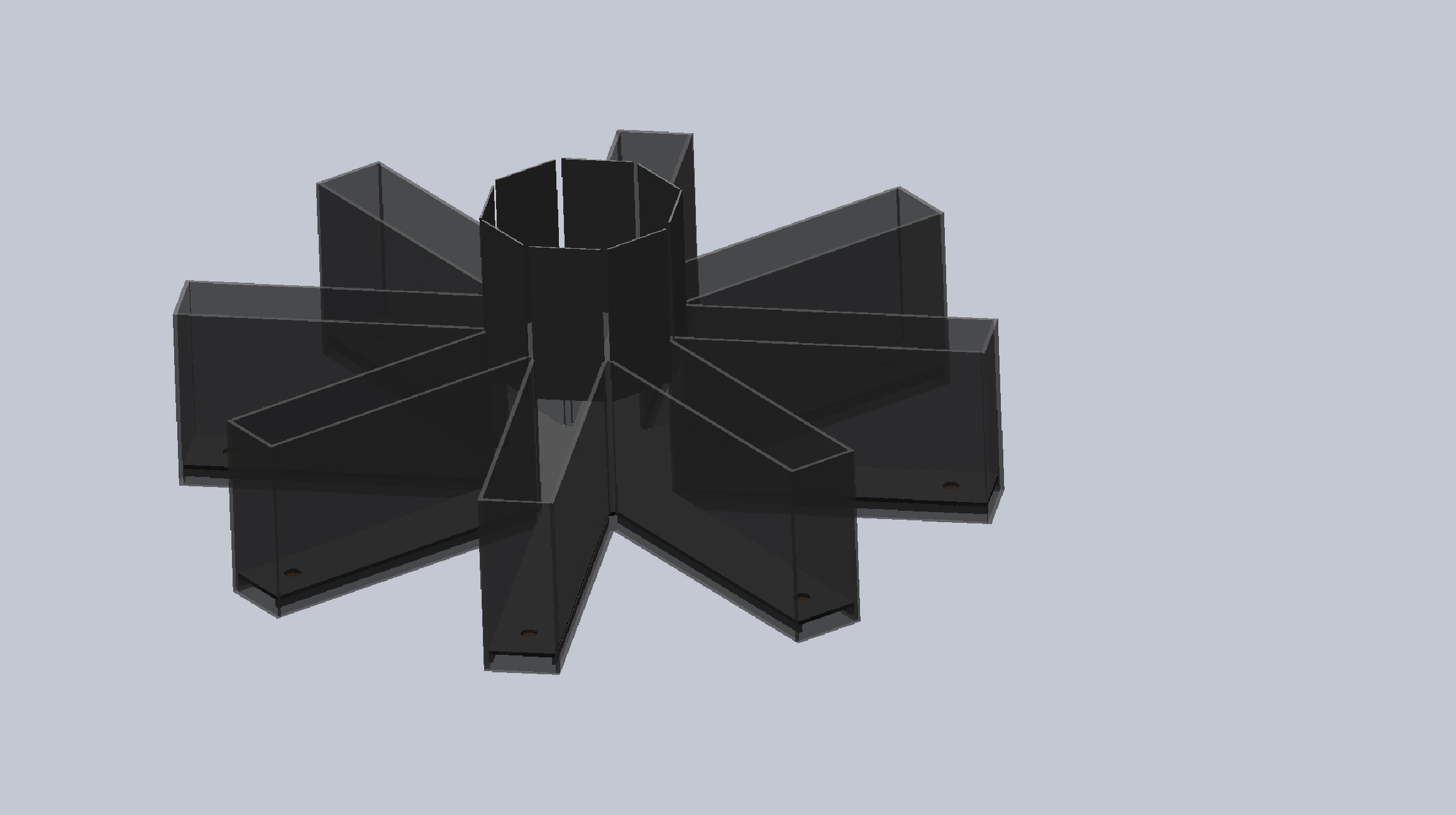

Radial Arm Maze
Ideal for spatial learning or memory tasks, the Radial Arm Maze’s structure allows animals to select among eight arms. After selecting one arm, animals must return to the center before choosing another. San Diego Instruments (SDI) also offers a watertight radial arm maze. SDI’s Radial Arm Maze also comes in a variety of additional colors, and includes manual entry doors to close off selected arms. SDI’s Radial Arm Maze is uniquely designed to be easy to use, clean and transport, as well as highly versatile
Features#
- Rat and mouse models
- Compatible with our BehaviorCloud video tracking system
- Solid color model (black, white or beige) or clear wall model (for use with external cues).
- Interchangeable plain and pellet holed floors for our dry maze
- Manual entry doors to close off arms-both dry and water tight maze
- Made of durable and easy to clean ABS plastic or acrylic
Specifications#
Radial Arm Maze Dimensions#
| MOUSE | RAT | |
| A | 26.45″ | 47.86″ |
| B | 9″ | 18.5″ |
| C | 8.45″ | 10.86″ |
| D | 3″ | 4″ |
| E | 6″ | 10″ |
| F | .75″ DIA. x .5″ DEEP | 1″ DIA x .75″ DEEP |
Water Tight Radial Arm Maze Dimensions#
| MOUSE | RAT | |
| A | 27″ | 53″ |
| B | 9″ | 15.5″ |
| C | 8.8″ | 22″ |
| D | 3.5″ | 5.5″ |
| E | 8.25″ | 24″ |
