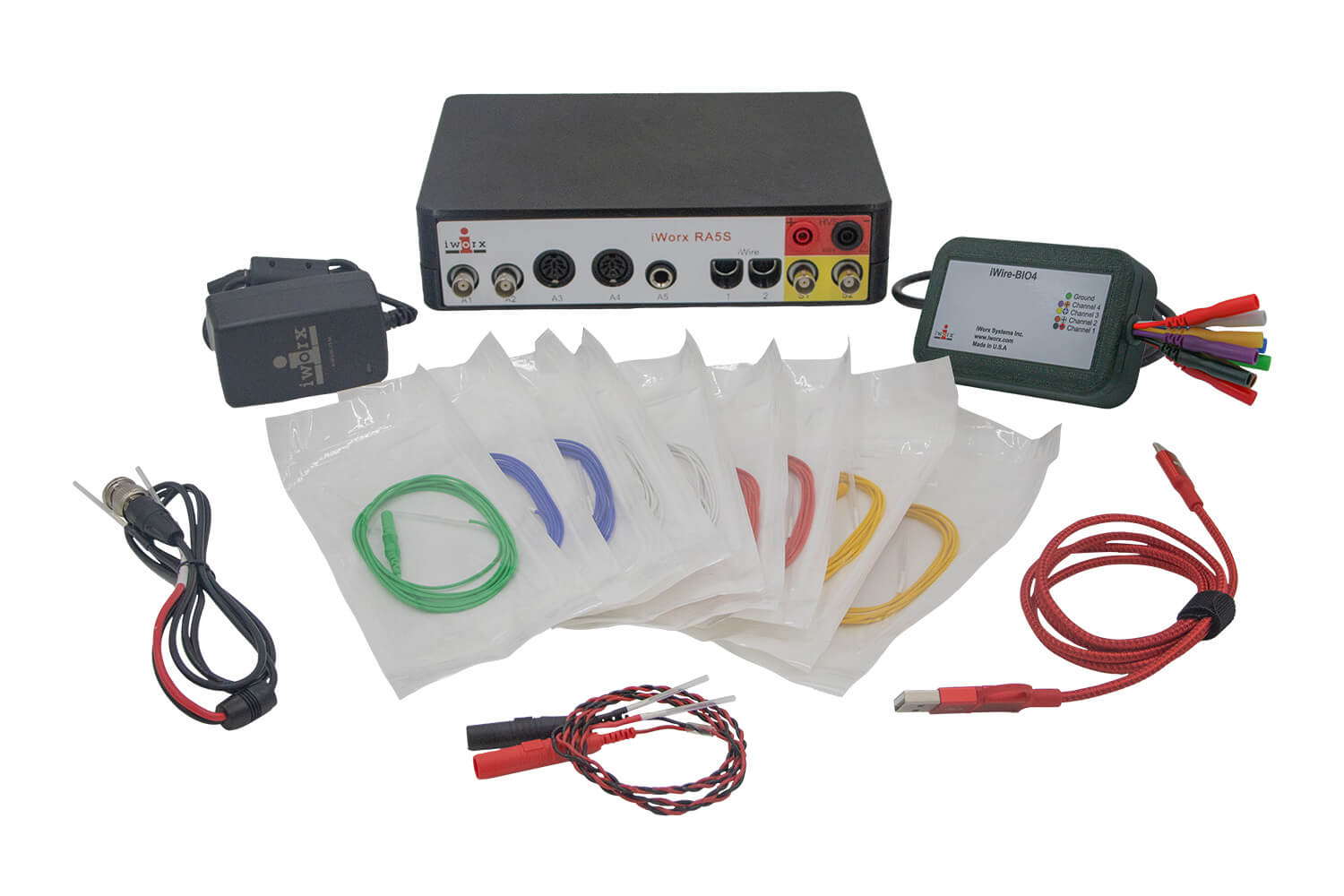

The RS-EMG-SA-STIM is made specifically to study Compound Muscle Action Potential (cMAP) and Nerve Conduction Velocity. This system is multipurpose for EMG and ECG as well, with 4-8 channels of EMG recordings, or a combination of EMG and ECG recordings. It is optimized for recording data from rodents and other small animals.

Features

• Portable, USB powered
• Color coded leads
• Easy export
• Built in Journal for creating reports
• Lab Site license included
• Free software updates
• Record multiple channels of EMG, ECG, EOG simultaneously from a single subject
• EMG analysis included

LabScribe EMG Analysis Module

The iWorx LabScribe EMG Software Module is a robust and intuitive tool designed to effortlessly streamline the analysis of EMG data across a wide range of species.

Measurements

• SEMG Measurements
• Maximal Voluntary Contraction (MVC)
• Muscle Force
• Fatigue
• Recruitment
• Summation
• Incomplete Tetanus
• Complete Tetanus
• H-Reflex

Der Beitrag Small Animal, 4 Channel EMG system, with IX-RA5S recorder, iWire-BIO4, LabScribe Software, and platinum needle recording and stimulation electrodes erschien zuerst auf Bilaney Consultants.

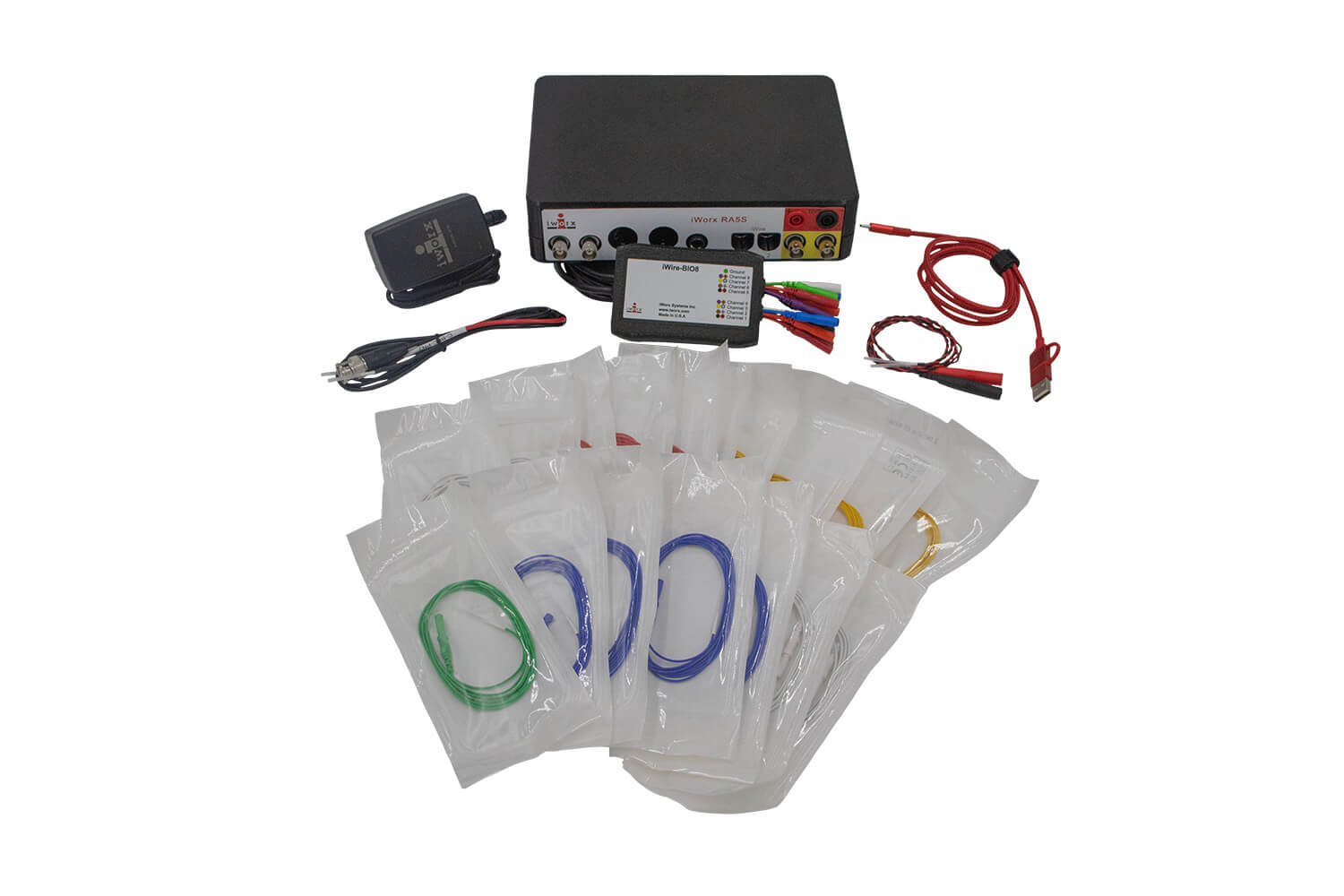

The RS-EMG-SA-STIM is made specifically to study Compound Muscle Action Potential (cMAP) and Nerve Conduction Velocity. This system is multipurpose for EMG and ECG as well, with 4-8 channels of EMG recordings, or a combination of EMG and ECG recordings. It is optimized for recording data from rodents and other small animals.

Features

• Portable, USB powered
• Color coded leads
• Easy export
• Built in Journal for creating reports
• Lab Site license included
• Free software updates
• Record multiple channels of EMG, ECG, EOG simultaneously from a single subject
• EMG analysis included

LabScribe EMG Analysis Module

The iWorx LabScribe EMG Software Module is a robust and intuitive tool designed to effortlessly streamline the analysis of EMG data across a wide range of species.

Measurements

• SEMG Measurements
• Maximal Voluntary Contraction (MVC)
• Muscle Force
• Fatigue
• Recruitment
• Summation
• Incomplete Tetanus
• Complete Tetanus
• H-Reflex

Der Beitrag Small Animal, 8 Channel EMG system, with IX-RA5S recorder, iWire-BIO8, LabScribe Software, and platinum needle recording and stimulation electrodes erschien zuerst auf Bilaney Consultants.

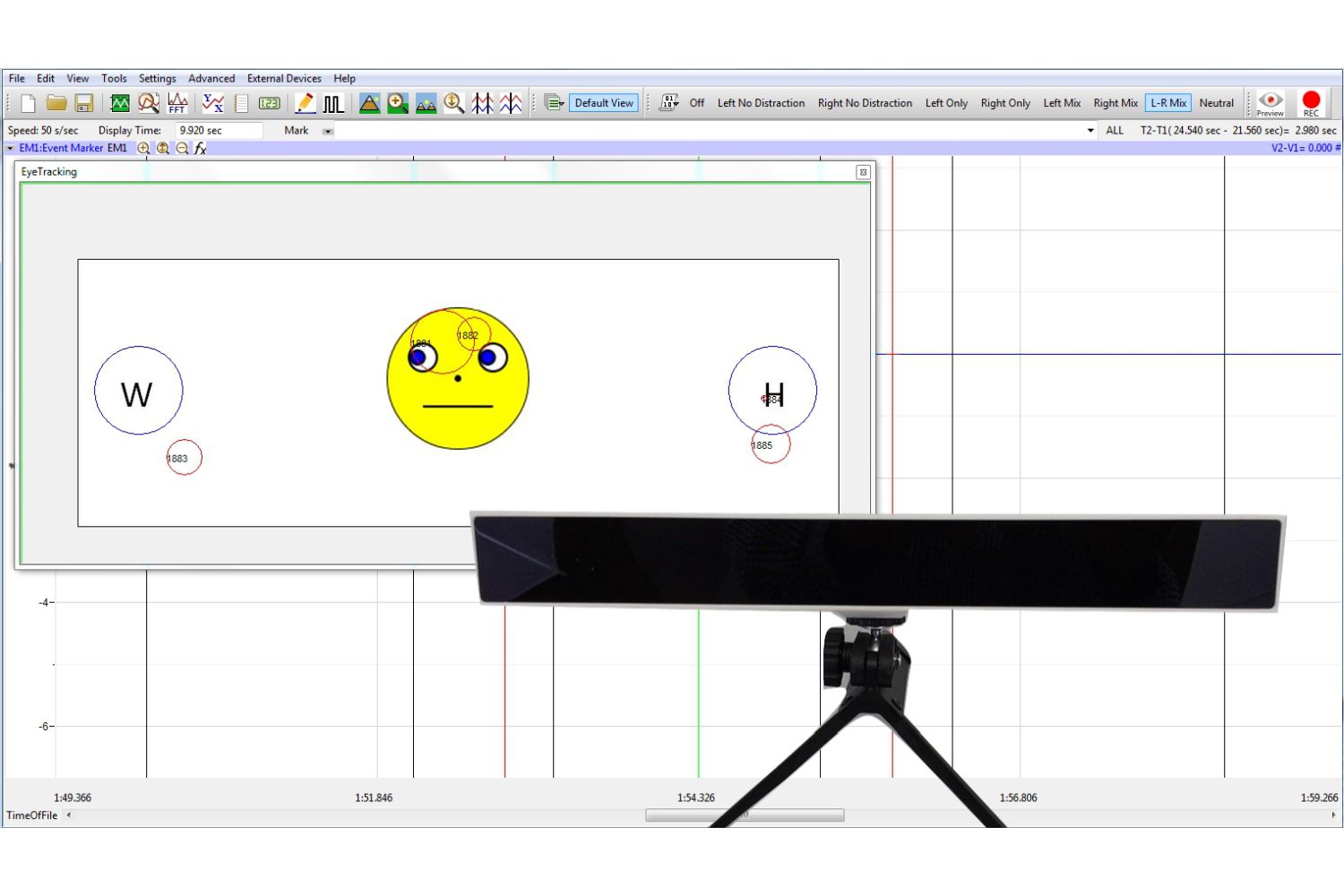

Der Beitrag A-iTRAX Eye Tracking Add-on Set erschien zuerst auf Bilaney Consultants.

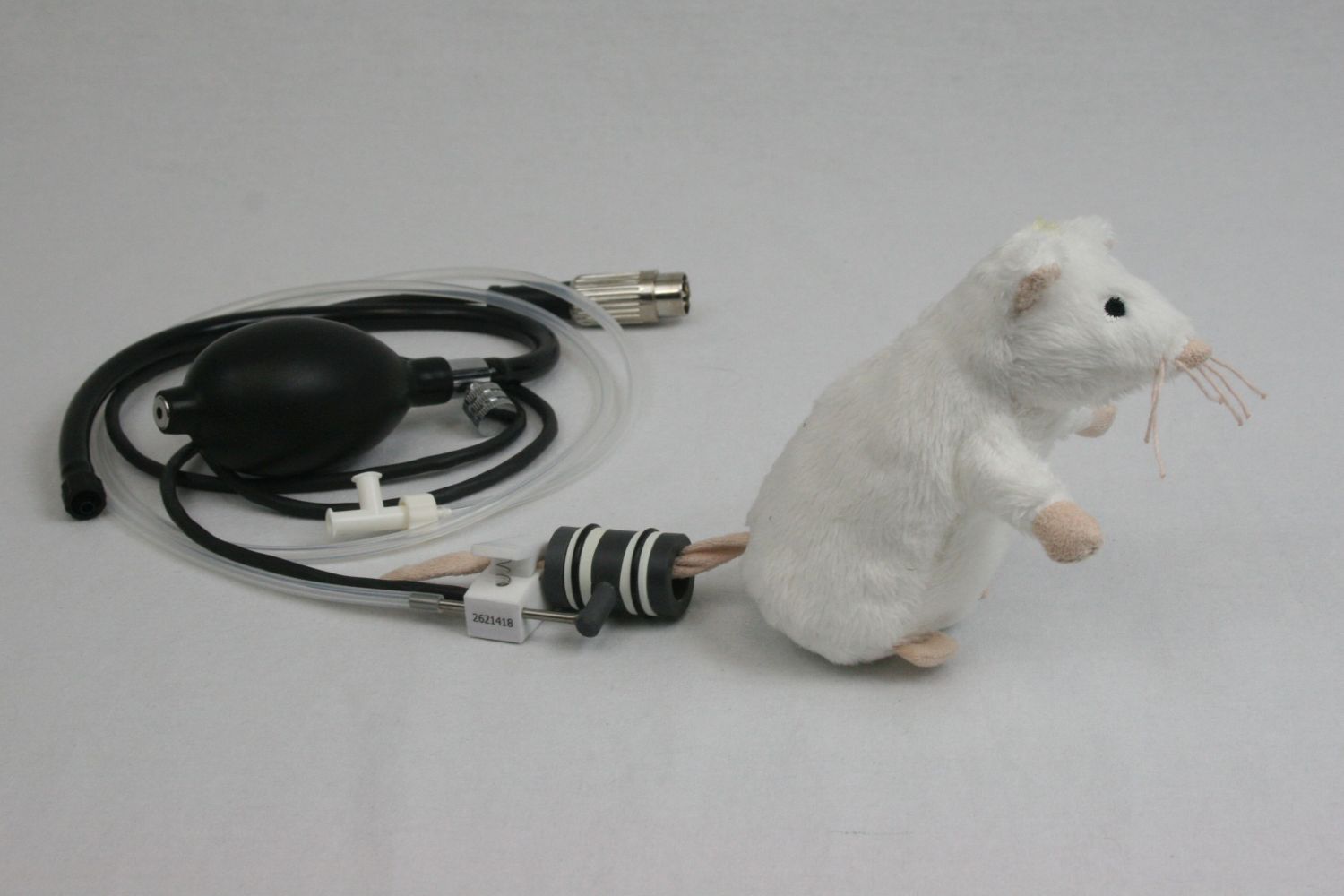

Manual Non-Invasive Blood Pressure (NIBP) Sensor for Rat Includes :
Pulse transducer & pressure cuff
Calibration kit
Broome Style Rodent Restrainer.

Suitable to performing measurements on a single animal at one time.  The manual method requires care when deflating the cuff.

Compatible with and iWorx Recorder or amplifier with a DIN8 input, such as

• Some compatible recorders:  IX-214, IX-TA, IX-RA-834, IX-Ra5 etc
• Some compatible amplifiers : IA-100D, IA-400D, ETH-256 etc.

Pulse transducer & pressure cuff (diameter 12 mm) is used for rats

Pulse transducers & cuff (diameter 7 mm) is suitable for adult mice (> 25 g approx., depending on the strain) and rats up to 150 grams

Broome Style Rodent Restrainer. 1.5″ diam. x 5.5″long is suitable for 30 to 125g .

Broome Style Rodent Restrainer.  2″ diam. x 8″long is suitable for 125 – 250g .

Broome Style Rodent Restrainer. 2.5″ diam. x 8.5″long is suitable for 250 – 500g .

Der Beitrag Rodent Manual NIBP System erschien zuerst auf Bilaney Consultants.

The iWorx ZS-200 Zebrafish ECG Recording and Analysis System provides an ideal way to use this cost-effective model for high throughput, rapid screening of compounds.

The LS-ECG LabScribe ECG Analysis Module provides an array of analysis options, including T and QT segment shortening and prolongation, which are a key indicator of cardiac function.

Der Beitrag Zebrafish ECG system erschien zuerst auf Bilaney Consultants.

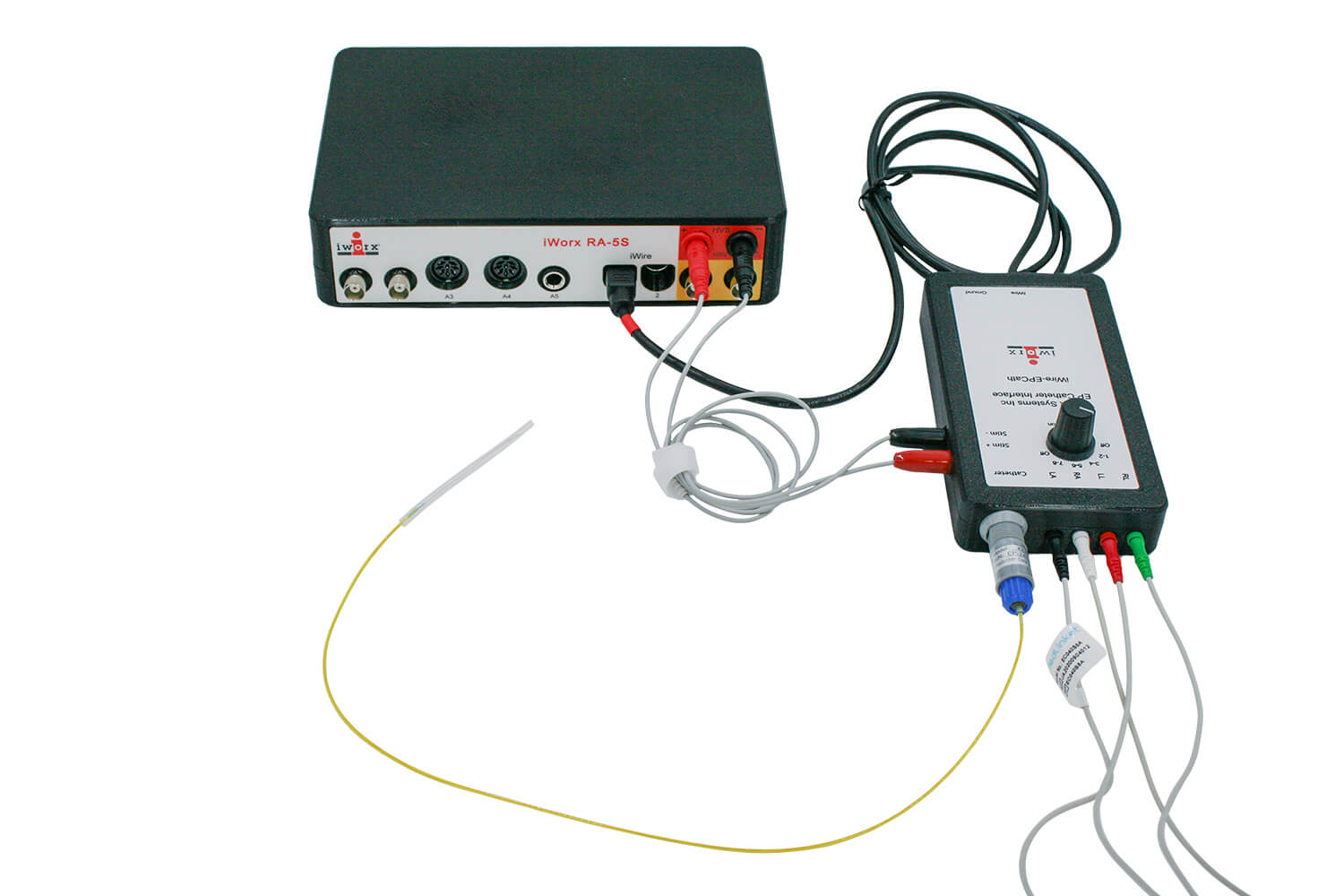

iWorx offers turnkey Intracardiac Electrical Potential Recording and Measurement Systems which include data recorders, amplifiers, cables, catheters and software. Each system has been configured to address the subject being studied and acquisition requirements.

Overview

The small animal electrophysiology catheter is designed for intracardiac electrophysiology studies in mice and rats. It is frequently used to investigate cardiac arrhythmias by delivering pacing and recording signals from inside the heart. This tool helps researchers analyze the electrical properties of the atria and ventricles, making it essential for standard electrophysiological research in rodents and similar experimental animals.

The platinum needle electrodes can be used to record a surface ECG from the animal as well.

Product Features

• Monitor intracardiac electrical signals
• Capable of simultaneously collecting ECG signals from multiple locations
• Can collect signals and deliver stimulation simultaneously
• Customizable electrode quantity, size and spacing

Standard Sizing

• Mice intracardiac catheter – 1.2F
• Rat intracardiac catheter – 2.4F

Applications

• Bundle of His characterization
• SA node characterization
• General signal propagation
• Endocardial ECG assessment
• Regional atrial assessment
• Conduction studies
• Qualification of cardiac insult

System Includes

• IX-RA5S data recorder​ The iWorx RA5S data acquisition system with High Voltage Stimulator demonstrates the high resolution, low noise and flexibility required for a variety of research applications
• Octapolar EP Catheter Mouse Intracardiac: 1.3F Electrode spacing 1 mm, Electrode width 1 mm
• Complete Small Animal Heater Controller SA-TCS-6: Heater controller with a 6” x 8” heated bed for mice
  SA-TCS-8: Heater controller with a 8"x10" heated bed for rats.
• Platinum Needle Electrodes C-ISO-PN3 : 3 subdermal platinum needle electrodes
• Electrophysiology Catheter interface iWire-EPcath
• Cables C-BNC-2mmM : BNC to 2mm Male Pin cable
  C-HVS-2mmM: 2 Safety Connector to 2mm Male Pin cable
  C-ISO-2mmM: 3x, 2mm Male Pin to Female Safety Pin cable

• LabScribe ECG analysis software LabScribe Data acquisition and analysis software with the advanced ECG analysis module.

Der Beitrag Intracardiac Electrophysiology Rat System, erschien zuerst auf Bilaney Consultants.

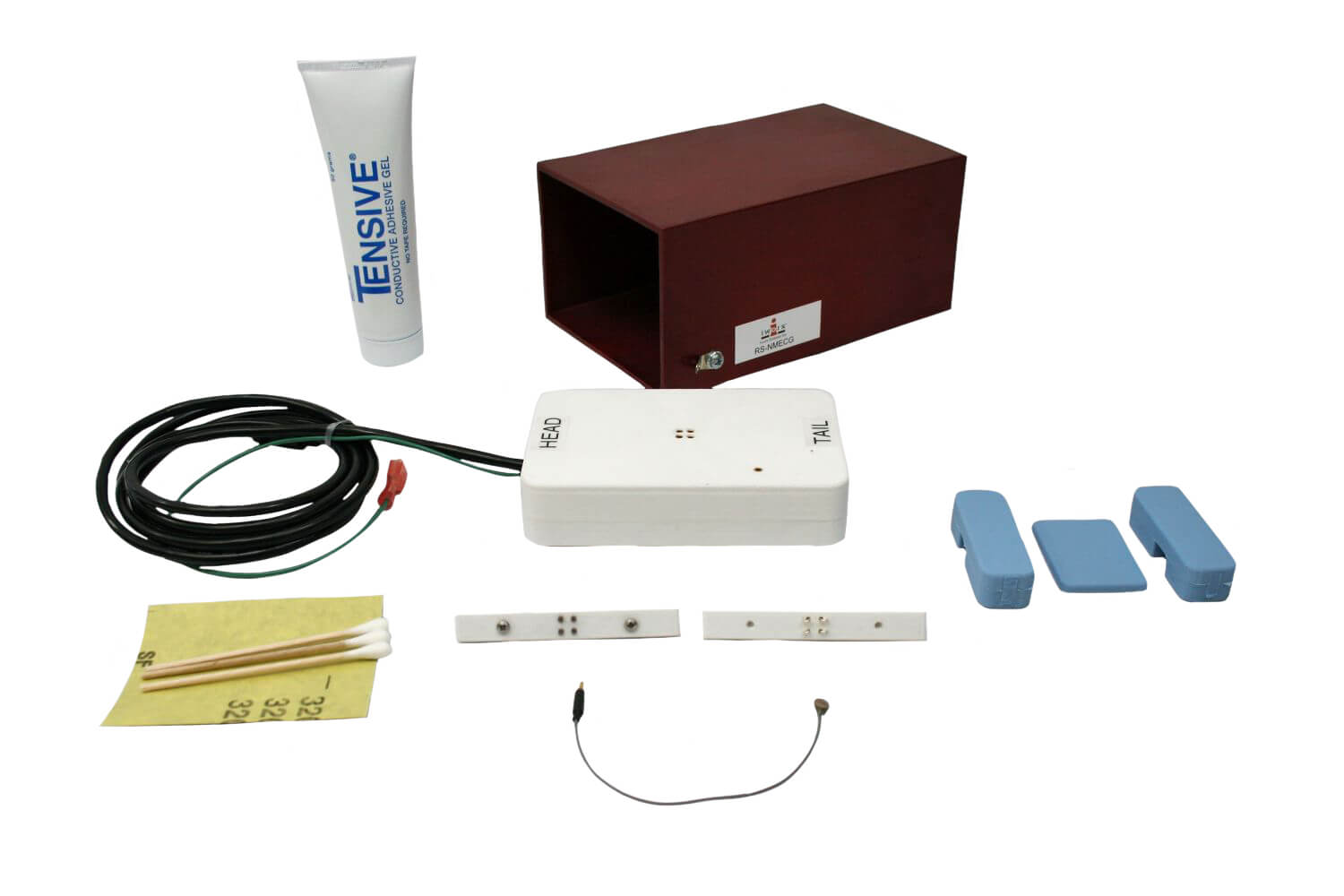

Features:

• Non-Invasive
• Measure Lead I and Lead II
• Calculate Lead III, aVR, aVL, aVF
• Measure Respiration
• Built-in Heater to maintain the animal body temperature
• Simple, Compact, USB powered

Der Beitrag Neonatal Mouse ECG System erschien zuerst auf Bilaney Consultants.

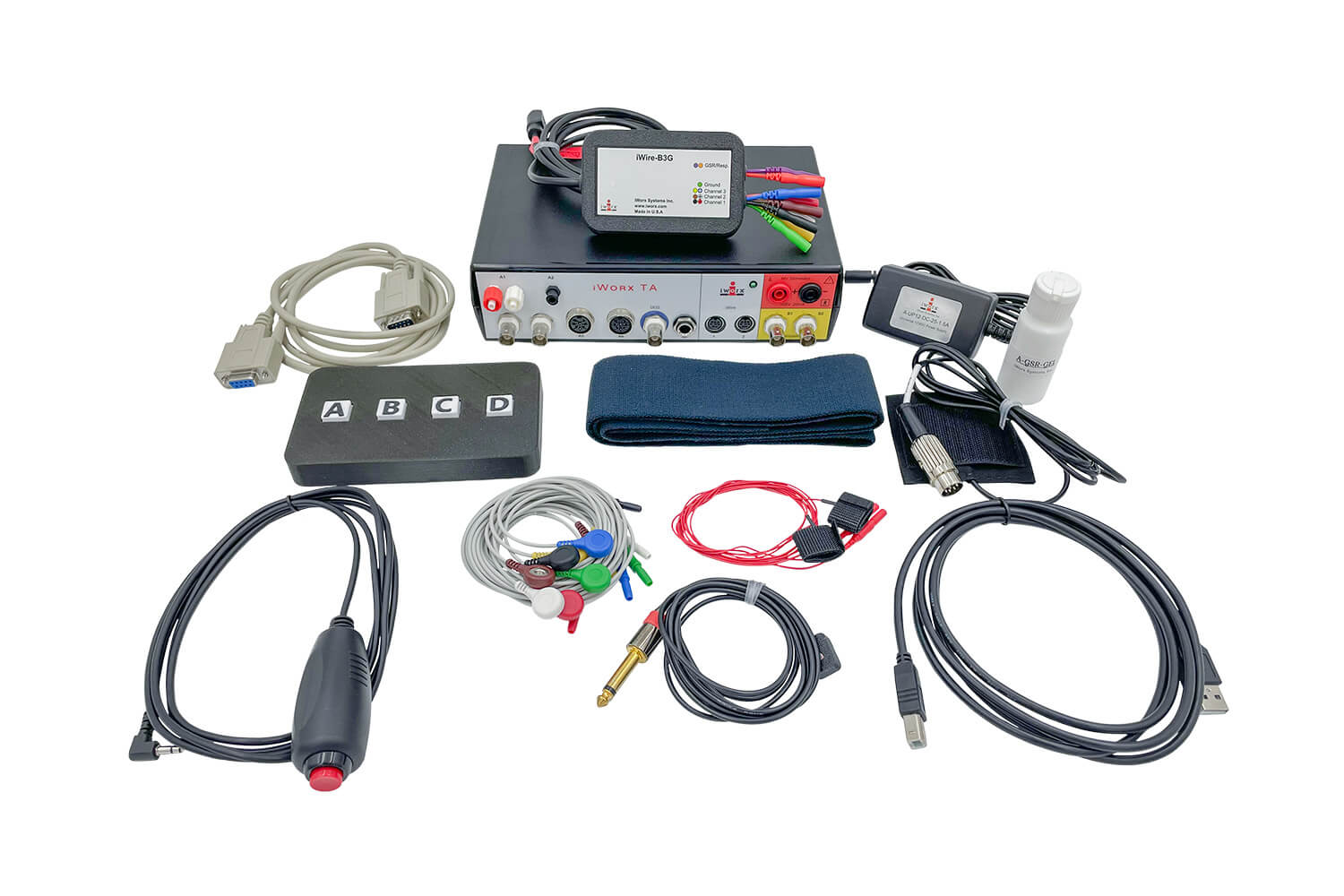

Features:

• Record biopotentials such as ECG, EMG, EEG, EOG, etc..
• Record EDA ( GSR, SCL, SCR) activity
• Record Temperature, Pressure, etc.
• Mark onset of Visual Stimuli
• Record responses with the RPD-400 and EM-220
• Present Audio-Visual stimuli with Experiment Builder
• Use Digital outputs to send events to external devices.
• Accept exetrnal TTL Digital Inputs from other devices.
• Prebuilt experiments for common psychological tests, such as Stroop effect, Gaze-CueParadigm, and Eriksen Flanker Test
• Use multiple monitors
• Does not need multiple computers
• Use the Stimulus Response Module to automate data analysis
• Site License included

Experiment Builder:

• Present Media, such as images, movies, sounds.
• Use spreadsheets to automate tasks.
• Graphical User Interface.
• Cross-platform application, running on Windows or Mac OS X

Stimulus Response Analysis:

Automatically calculate data from the response elicited by a stimulus. Parameters that can be calculated from a response include:

• Mean,
• Maximum
• Minimum
• Time to Maximum
• Time to Minimum
• Response Time
• Correct Response

Optional:

• Use iWire-AM to monitor the onset and the peak amplitude of the audio, including participant vocal response via microphone.
• Sync with Gazepoint Eyetrackers.
• Use iWorx-Serial-Interface to sync with serial output devices

Der Beitrag Stimulus Response System erschien zuerst auf Bilaney Consultants.

iWorx offers turnkey Intracardiac Electrical Potential Recording and Measurement Systems which include data recorders, amplifiers, cables, catheters and software. Each system has been configured to address the subject being studied and acquisition requirements.

Overview

The small animal electrophysiology catheter is designed for intracardiac electrophysiology studies in mice and rats. It is frequently used to investigate cardiac arrhythmias by delivering pacing and recording signals from inside the heart. This tool helps researchers analyze the electrical properties of the atria and ventricles, making it essential for standard electrophysiological research in rodents and similar experimental animals.

The platinum needle electrodes can be used to record a surface ECG from the animal as well.

Product Features

• Monitor intracardiac electrical signals
• Capable of simultaneously collecting ECG signals from multiple locations
• Can collect signals and deliver stimulation simultaneously
• Customizable electrode quantity, size and spacing

Standard Sizing

• Mice intracardiac catheter – 1.2F
• Rat intracardiac catheter – 2.4F

Applications

• Bundle of His characterization
• SA node characterization
• General signal propagation
• Endocardial ECG assessment
• Regional atrial assessment
• Conduction studies
• Qualification of cardiac insult

System Includes

• IX-RA5S data recorder​ The iWorx RA5S data acquisition system with High Voltage Stimulator demonstrates the high resolution, low noise and flexibility required for a variety of research applications
• Octapolar EP Catheter Mouse Intracardiac: 1.3F Electrode spacing 1 mm, Electrode width 1 mm
• Complete Small Animal Heater Controller SA-TCS-6: Heater controller with a 6” x 8” heated bed for mice
  SA-TCS-8: Heater controller with a 8"x10" heated bed for rats.
• Platinum Needle Electrodes C-ISO-PN3 : 3 subdermal platinum needle electrodes
• Electrophysiology Catheter interface iWire-EPcath
• Cables C-BNC-2mmM : BNC to 2mm Male Pin cable
  C-HVS-2mmM: 2 Safety Connector to 2mm Male Pin cable
  C-ISO-2mmM: 3x, 2mm Male Pin to Female Safety Pin cable

• LabScribe ECG analysis software LabScribe Data acquisition and analysis software with the advanced ECG analysis module.

Der Beitrag Intracardiac Electrophysiology Mouse System, erschien zuerst auf Bilaney Consultants.

The iWorx 12 lead ECG recorder enables accurate and reliable ECG measurement and analysis of humans or animals. Measuring all 12 ECG leads simultaneously, this compact and lightweight PC-based ECG recorder enables highly detailed analysis of the anterior, lateral and inferior regions of the heart.

The RS-ECG12 system is optimized for measuring large animal ECG.

The iWorx 12 lead ECG recorder enables accurate and reliable ECG analysis of resting animals. Measuring all 12 ECG leads simultaneously, this compact and lightweight PC-based ECG recorder enables highly detailed analysis of the anterior, lateral and inferior regions of the heart. The IX-ECG12 connects to and is powered by a USB port on any Windows or Macintosh computer. Data is recorded and analyzed with iWorx advanced LabScribe ECG Software Module.

System Includes

• IX-ECG12 12 Lead ECG Recorder Record all 12 ECG leads Lead I, Lead II, Lead III, aVr, aVl, aVf, V1, V2,V3, V4, V5, V6 simultaneously from a single subject.
• LabScribe Data Acquisition and Analysis Software LabScribe Data acquisition and analysis software
• LabScribe ECG Analysis Software LabScribe Data acquisition and analysis software with the advanced ECG analysis module.
• Snap Lead Electrodes C-ISO-SL10: set of 10 snap lead electrodes
• ECG Electrodes Disposable ECG Ag-AGCl electrodes (package of 50)

Templates for Different Species

• Human
• Small Dog
• Large Dog
• Pig
• Rabbit

• Guinea Pig
• Mouse
• Rat
• Zebrafish

Measurements

• Measure various intervals such as: QRS, QT, QTc, QR, ST Pb-R, P-R, Pe-R, Qb-R, Q-R, S-R, Se-R, Tb-R, T-R, Te-R
• Amplitudes such as: P , Q, R, S , T, ST elevation, QR Amp

Filtering and Averaging

Use FIR and Notch filters to filer out the noise from the ECG signal before processing.

Multiple cycles can also be average further reducing the noise. Average by specified number of beats, or specified time interval.

Graphical Display of Detected Points

The following locations are displayed on the ECG waveform:

• Beginning, peak and end of P
• Beginning of Q
• peak of R wave
• End of S
• Beginning, peak and end of T wave

Outliers and Artifacts

Outlier removal based on abnormal R-R intervals, heart rate, noise,  activity, P amplitude, and T amplitude.

Manually mark outliers if needed.  A list of outliers is displayed.

Der Beitrag RS-ECG12-LA: Large Animal 12-Lead ECG System erschien zuerst auf Bilaney Consultants.
