Der Beitrag A-iTRAX Eye Tracking Add-on Set erschien zuerst auf Bilaney Consultants.

Features:

• Record biopotentials such as ECG, EMG, EEG, EOG, etc..
• Record EDA ( GSR, SCL, SCR) activity
• Record Temperature, Pressure, etc.
• Mark onset of Visual Stimuli
• Record responses with the RPD-400 and EM-220
• Present Audio-Visual stimuli with Experiment Builder
• Use Digital outputs to send events to external devices.
• Accept exetrnal TTL Digital Inputs from other devices.
• Prebuilt experiments for common psychological tests, such as Stroop effect, Gaze-CueParadigm, and Eriksen Flanker Test
• Use multiple monitors
• Does not need multiple computers
• Use the Stimulus Response Module to automate data analysis
• Site License included

Experiment Builder:

• Present Media, such as images, movies, sounds.
• Use spreadsheets to automate tasks.
• Graphical User Interface.
• Cross-platform application, running on Windows or Mac OS X

Stimulus Response Analysis:

Automatically calculate data from the response elicited by a stimulus. Parameters that can be calculated from a response include:

• Mean,
• Maximum
• Minimum
• Time to Maximum
• Time to Minimum
• Response Time
• Correct Response

Optional:

• Use iWire-AM to monitor the onset and the peak amplitude of the audio, including participant vocal response via microphone.
• Sync with Gazepoint Eyetrackers.
• Use iWorx-Serial-Interface to sync with serial output devices

Der Beitrag Stimulus Response System erschien zuerst auf Bilaney Consultants.

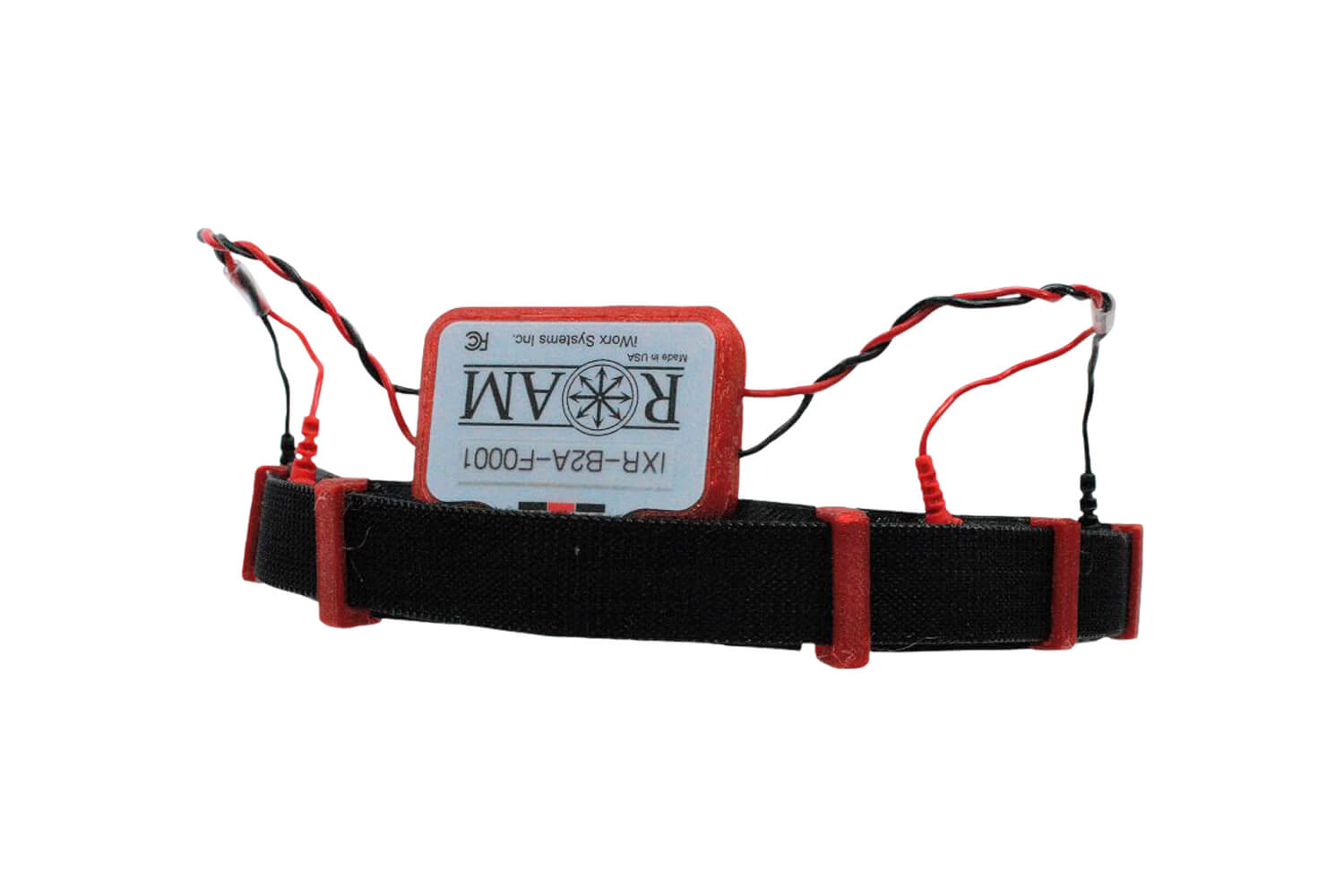

The iWorx ROAM is a versatile, wireless system with 8+ hours of continuous recording. Its 20ft range provides long-term recording and unrestricted movement. LabScribe data acquisition and analysis software simplifies EEG measurements.

The iWorx ROAM Wireless EEG is a headband wearable system designed to provide long-term recording and unrestricted movement. The headband has Ag-AgCl electrodes for measuring EEG from the Right and Left Frontal lobes. The protective case doubles as a charging station. The system works with both Windows and MacOS via standard USB interface. Data can be quickly analyzed with the included LabScribe analysis software or exported directly for other processing. The ROAM Wireless allows for hours of continuous recording with an untethered reach of 20 feet.

Features

• 8+ Hours of Continuous Recording
• Plug and Play Technology
• No Syncing Required
• PC and Mac compatible
• USB-Powered
• 3-axis Accelerometer measurements
• Includes LabScribe Software for Data collection and Analysis
• EEG analysis with LabScribe

System Includes

• IXR-B2A:  2 Channel Wireless EEG recorder with Acceleration
• ROAM wireless USB receiver
• A-HB-ROAM: Headband with Ag-AgCl electrodes
• LabScribe Recording and Analysis Software
• Retractable USB cable
• Hard-Shell case for Charging and Storage

Der Beitrag ROAM Wireless 2 Channel EEG and Accelerometer Headband System with LabScribe Software erschien zuerst auf Bilaney Consultants.

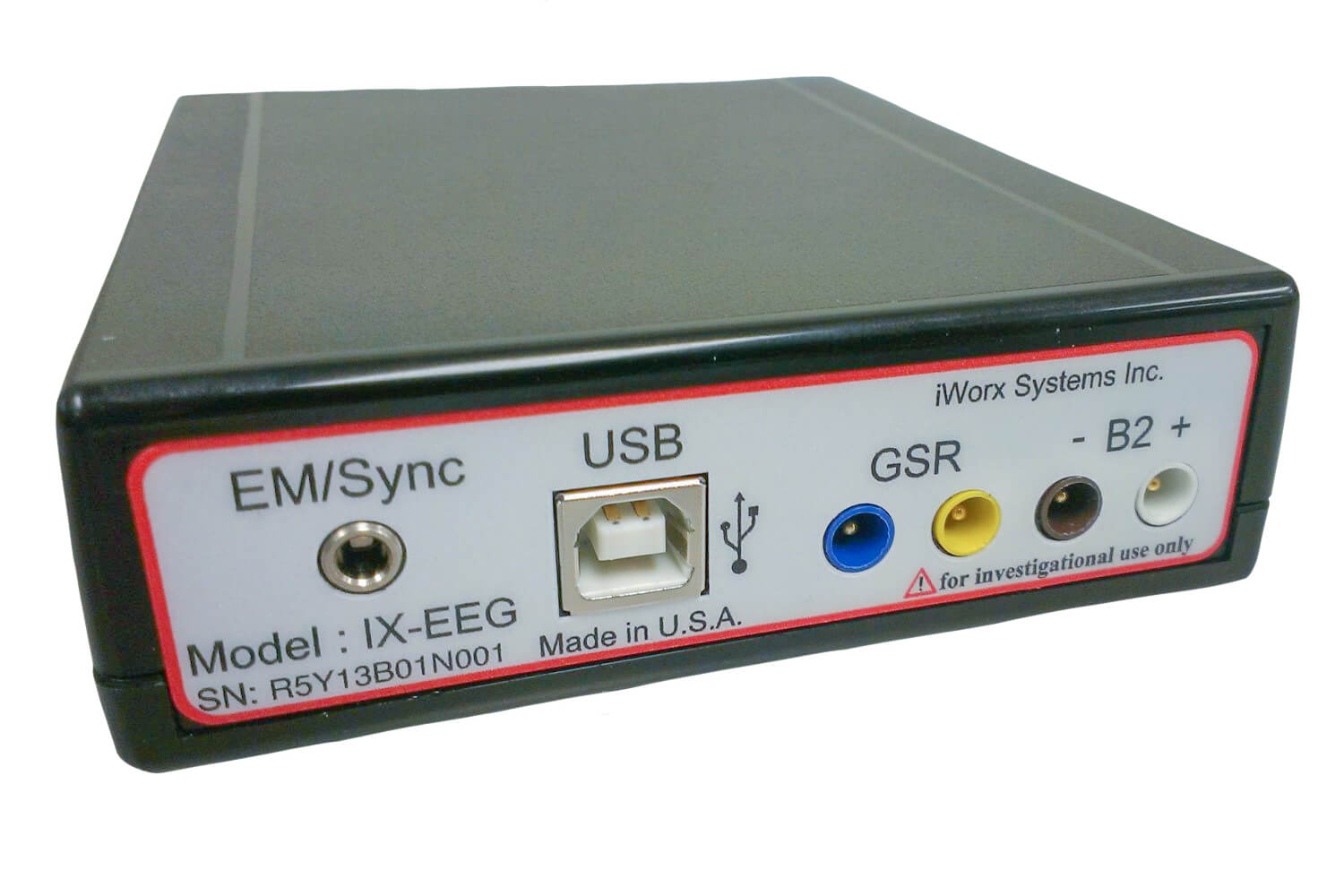

The EEG system consists of the IX-EEG recorder and the LabScribe acquisition and analysis software, including the EEG analysis module.

The IX-EEG is a 24 Channel Recorder allowing the following measurements simultaneously from a single human subject:

• 20 channels of EEG,
• 2 Bio Potentials such as ECG, EOG etc.
• GSR
• Event Marker

The recorder is furnished with LabScribe Software with the EEG Analysis Module and connects directly to a USB port on either a Macintosh or Windows computer. The EEG and GSR electrodes are connected to the subject by snap-leads to pre-gelled Ag/AgCl electrodes.

The IX-EEG requires an EEG cap such as: A-EEG-CAPSYS.

Der Beitrag IX-EEG 10-20 System EEG Recorder erschien zuerst auf Bilaney Consultants.

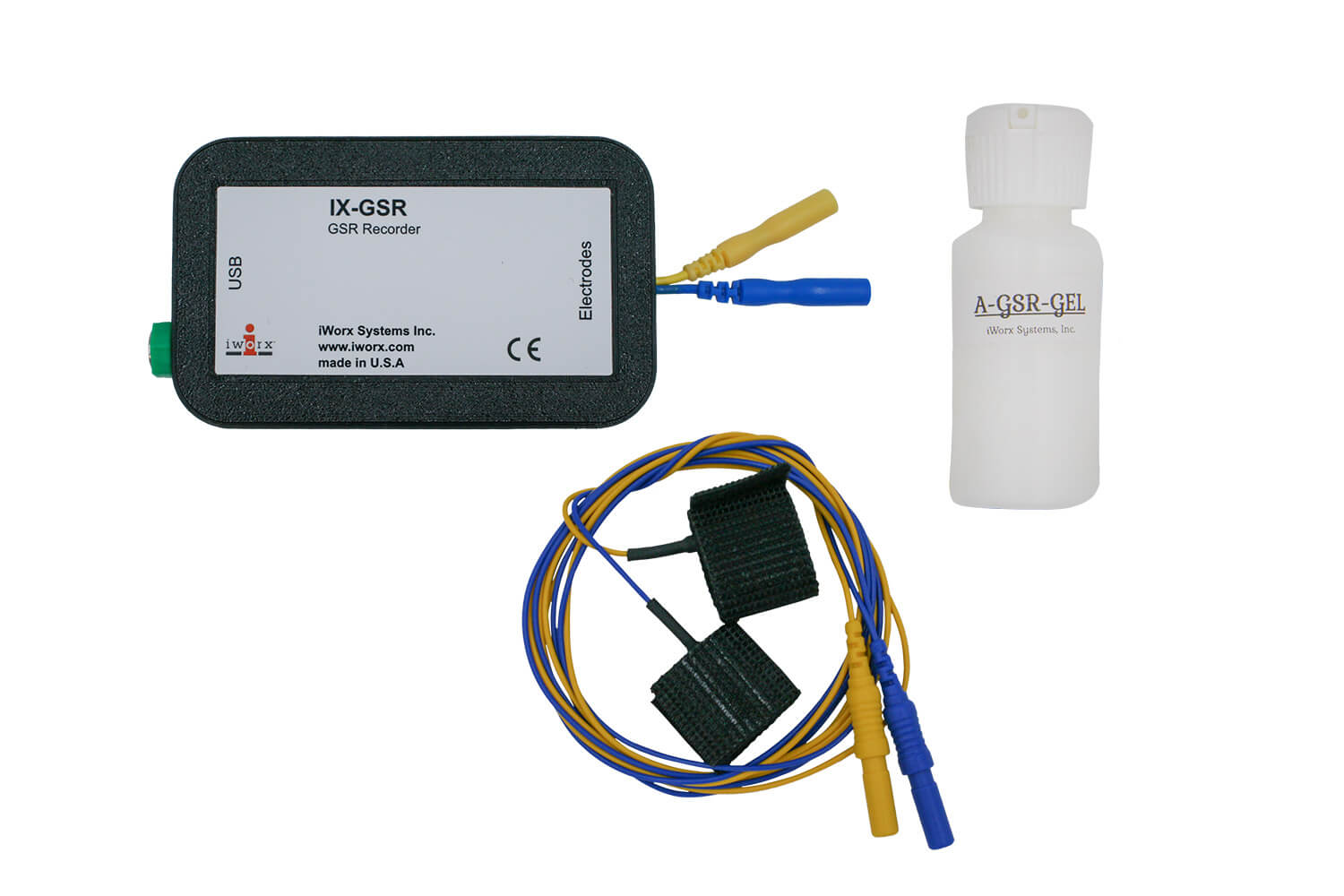

The IX-GSR recording module allows recording of? GSR (galvanic skin response) or EDA ( Electrodermal activity). The recorder includes iWorx LabScribe Recording and Analysis Software and connects directly to a USB port on either a Macintosh or Windows computer. The module connects to the subject by finger electrodes to record GSR.

The IX-GSR recording module allows recording of GSR (galvanic skin response) or EDA (Electrodermal activity). The recorder includes iWorx LabScribe Recording and Analysis Software and connects directly to a USB port on either a Macintosh or Windows computer. The module connects to the subject by finger electrodes to record GSR.

Electrodermal activity (EDA), is the property of the human body that causes continuous variation in the electrical characteristics of the skin. Historically, EDA has also been known as skin conductance, galvanic skin response (GSR), electrodermal response (EDR), psychogalvanic reflex (PGR), skin conductance response (SCR), and skin conductance level (SCL). Human extremities, including fingers, palms, and soles of feet display different bio-electrical phenomena. IX-GSR, is a GSR meter (or a skin conductance meter) which displays the change electrical conductance between two points over time.

Temperature

In addition to measuring GSR, the IX-GSR is also capable of measuring temperature using the TM-BIO temperature sensor.

Experiment Builder

Use the stimulus presentation capabilities of the included LabScribe software, to show an image, play a sound or a video file, while recording physiological parameters from the subject.

System includes:

• IX-GSR recorder
• LabScribe Software
• C-ISO-GSRYB reusable GSR electrodes
• A-GSR-GEL: Skin Resistance/Conductance Electrode Paste

Der Beitrag Isolated GSR,EDA,SCL,SCR Recorder erschien zuerst auf Bilaney Consultants.

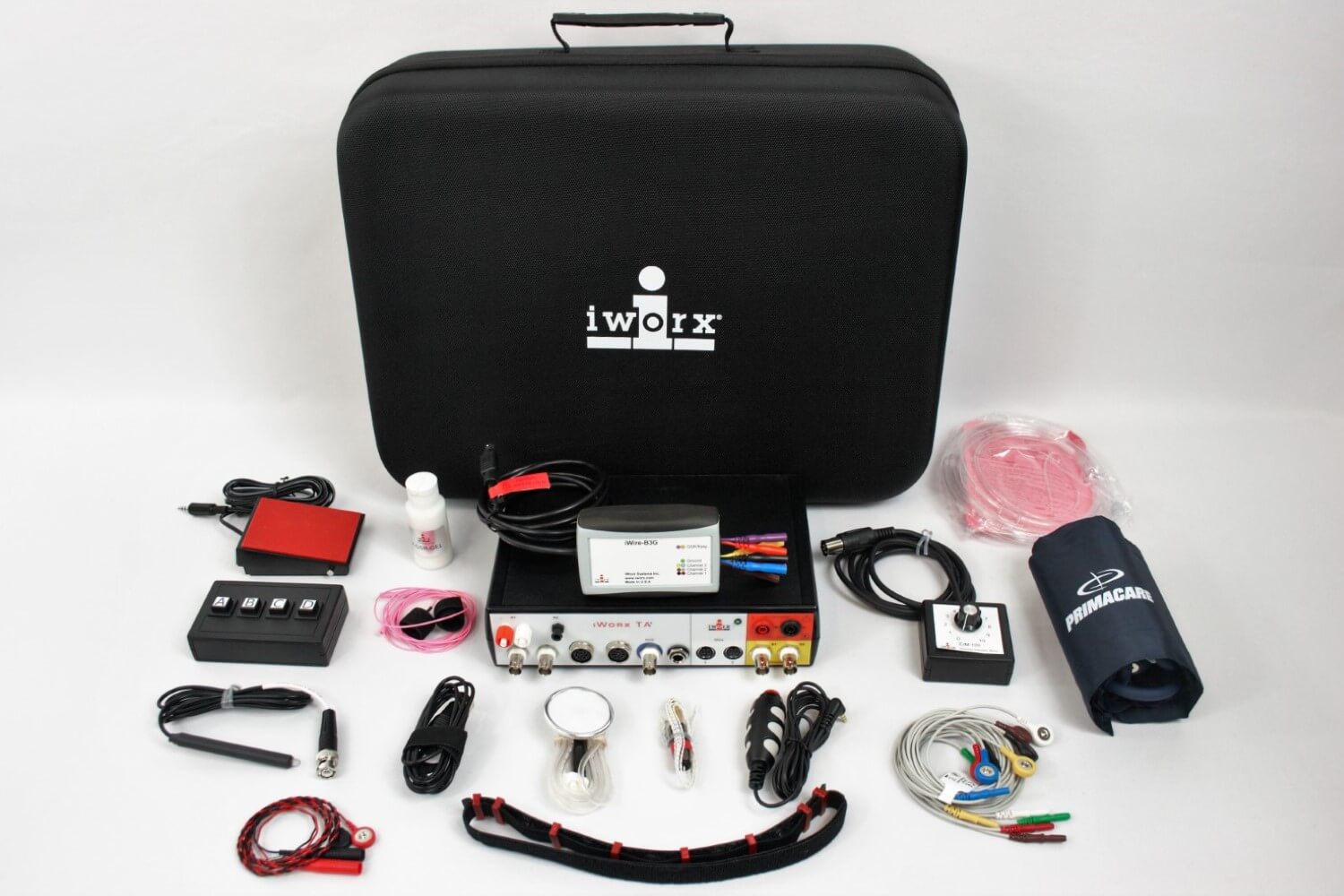

iWorx BMK-TA Behavioral Marketing Kit provides researchers with the tools to investigate the relationship between the human mind (psychology) and the physiological responses to what is being demonstrated. The kit includes a data recorder and all of the sensors needed to record physiological signals and perform cognitive and normative analyses.

Der Beitrag Business Marketing Kit erschien zuerst auf Bilaney Consultants.
