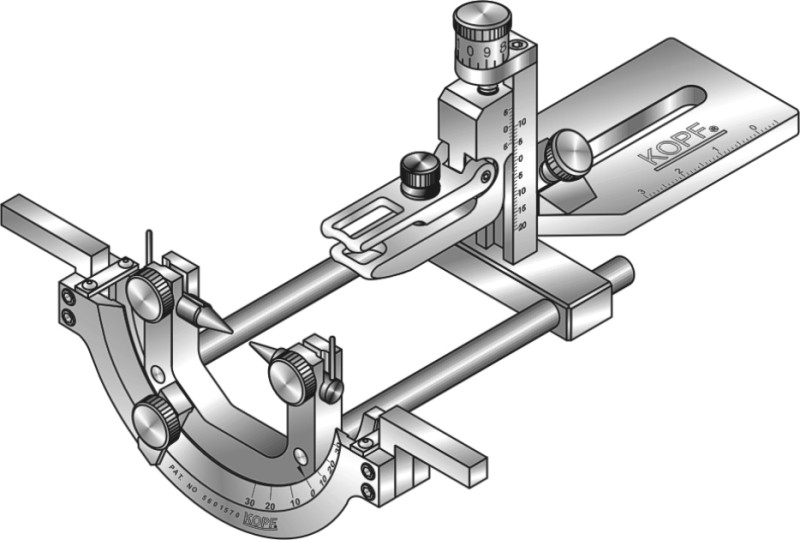

Model 924 Rotational Rat Adaptor

Model 924 Rotational Rat Adaptor is designed to provide coronal rotation of the head while having the ear bars and tooth bar fully engaged.

Dorsal/Ventral adjustment dial – Calibrated in 100 micron increments, 1 mm per revolution.

Dorsal/Ventral adjustment – 30 mm

Dorsal – 10 mm above ear bar zero

Ventral – 20 mm below ear bar zero

Midline adjustment – 30° either side of the stereotaxic plane

Adaptor Plate A/P adjustment – 35.7 mm

Ear Bars – 18° Tip Rat Ear Bars

(round with 20 mm of calibration).
